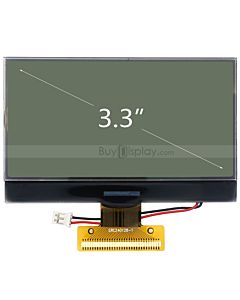

3.3"Graphic Display 240x128 LCD Arduino Module UC1698 White on Blue
- Buy 10 for US$11.35 each and save 2%
- Buy 30 for US$11.06 each and save 5%
- Buy 50 for US$10.77 each and save 7%
- Buy 100 for US$10.48 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
3.3"Graphic Display 240x128 LCD Arduino Module UC1698 White on Blue
US$11.64
-
8051 Microcontroller Development Board for Graphic LCD ERC240128-1
US$52.71
-
Total price
※ Product Recommendation

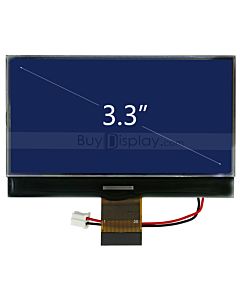

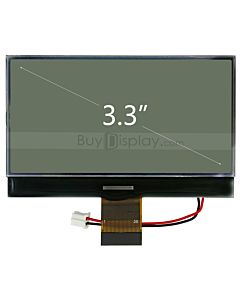

We recommend the replacement of ERC240128SBS-1 named ERC240128SBS-3 that has the same panel size and resolution,only the FPC is changed from soldering type to connector type.(Apr-13-2021)
Description
ERC240128SBS-1 is 3.3 inch blue background with 240x128 monochrome white pixels cog(chip on glass) lcd module,UC1698 controller,compact size,high contrast,wide operating temperature,white led backlight,stn-blue lcd,fpc connection,optional led backlight connector and 4-wire resistive touch panel.The fpc is the soldering type,no need connector.It supports 6800 8-bit,8080 8-bit parallel interface.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet for Graphic LCD Module,Controller,Connector
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
240x128 Dots Graphic COG LCD Module Datasheet | 1.0 | English | Jul-03-2012 |
475K
|
|
Controller IC UC1698 Datasheet | 1.0 | English | Aug-07-2008 | 613K |
|
2 Pins 2.0mm Pitch Backlight Connector Datasheet | 1.0 | English | Jul-26-2012 | 214K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
1.0 | English |
Jun-18-2009
|
89K | |
|
1.0 | English |
Jun-21-2009
|
238K | |
 |
N/A | N/A |
N/A
|
N/A |
| Gross Weight (kg) | 0.0470 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ERC240128SBS-1 |
| Display Format | 240x128 Dots |
| Interface | 6800 8-bit Parallel , 8080 8-bit Parallel |
| IC or Equivalent | UC1698 |
| Appearance | White on Blue |
| Diagonal Size | 3.3“ |
| Connection | FPC-Soldering |
| Outline Dimension | 86.4(W)x54.2(H)x5.2(T)mm |
| Visual Area | 80.40x42.40mm |
| Active Area | 73.18(W)x39.02(H)mm |
| Dot (Pixel) Size | 0.285x0.285mm |
| Dot (Pixel) Pitch | 0.305x0.305mm |
| IC Package | COG |
| Display Type | STN-LCD Blue |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Viewing Direction | 6:00 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 75mA |
| Power Supply(Typ) | 3V |
| Supply Current for LCM(Max) | 1400uA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
