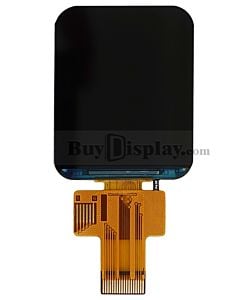

1.69" Color 280x240 Round Rectangle IPS TFT LCD Display Panel ST7789
US$3.74
- Buy 10 for US$3.64 each and save 3%
- Buy 30 for US$3.54 each and save 5%
- Buy 50 for US$3.44 each and save 8%
- Buy 100 for US$3.34 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Shipping
We cooperate with DHL,FEDEX,TNT,EMS China Post and Singapore Post for shipment and choose the most appropriate one for the destination .A shipping cost estimate is displayed during online checkout based on the country you provide.
Payment
We primarily use paypal to process secure online payments. Through PayPal, we accept MasterCard, VISA, American Express,Discover cards.We also accept payment by wire transfer and west union.
Tax Information
ALL prices listed on buydisplay exclude taxes,import fees, and customs duties. Customers may be subject to these fees.
Warranty
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year after receipt of order and all products are free of visual defects and missing parts for a period of 7 days after receipt of order.If a product was damaged during shipping or the order is incorrect, please notify us within 3 days after receipt of order.
Return Policy
Products under warranty can be returned for repair or replacement.Before returning a product, you must contact us for a Return Material Authorization (RMA).If you have a product out of warranty that you would like to repair, please also contact us.
Continulty Supply
We promise the long terms continuity supply.Some controller IC or glass cell may stop the production by supplier,we'll try our efforts to find the compatible ones as replacement.
Description
ER-TFT1.69-1 is 240x280 pixel 1.69 inch IPS tft lcd display with ST7789V controller,super wide viewing angle, superior display quality, and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.
It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit Parallel interface with soldering type FPC,no connector is needed.
What's included in the package ?
| Number | Standard Accessory Name | Quantity |
|---|---|---|
| 1 | 1.69 inch 240x280 pixels TFT LCD Display | 1 |
Datasheet for TFT LCD Display,Controller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT1.69-1 Datasheet | English | Feb-22-2022 | 1.1M |
|
Controller ST7789VW Datasheet | English | Sep-01-2017 | 3.2M |
Tutorial - 8051 Microcontroller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
8051 Interfacing and Demo Code | English | Feb-28-2022 | 277K |
| Gross Weight (kg) | 0.0140 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2022. |
| Part Number | ER-TFT1.69-1 |
| Display Format | 240x280 Pixels |
| Interface | 8080 8-bit Parallel |
| IC or Equivalent | ST7789V |
| Appearance | RGB |
| Diagonal Size | 1.69“ |
| Connection | FPC-Soldering |
| Outline Dimension | 30.07(W)x37.43(H)x1.5(T)mm |
| Visual Area | 28.97x33.63mm |
| Active Area | 27.97(W)x32.63(H) |
| Dot (Pixel) Pitch | 0.11x0.11mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 4K/65K/262K |
| Viewing Direction | IPS |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 480cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 30mA |
| Power Supply(Typ) | 2.8V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
