8051 Microcontroller Development Board for Graphic LCD ERC240160-2
The display is a critical component in every project, impacting the case, firmware, electrical design, user interface, and even battery life. For these reasons, and because it is the most visible component of your product, it must be approved by the mechanical design team, management and marketing.Before these teams can approve, they need to see it in action. But it can take days or weeks to connect a display to your platform, initialize it and build a code library able to create believable demonstrations. Meanwhile, the whole project is on hold.Our 8051 development kit / demonstration board can solve this problem. Use it to get the display seen, demonstrated and approved for your project.

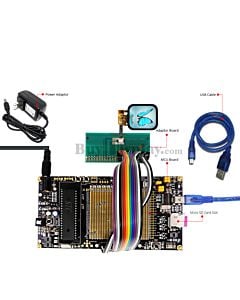

ER-DBC240160-2 is a microcontroller 8051(80C51) demonstration and development kit for ERC240160-2 series product that is 3.4 inch 240x160 graphic lcd module.The kit includes MCU board controlled by STC89LE516RD,ISP(In System Programming) with USB port and cable to customize the demonstration that includes your own bitmap images,personalized fonts,symbols,icons and burn sketches,the power adaptor,the adaptor board with various pitch dimension used to connect MCU board and display,crimping tool used to fix display.Optional for 6800/8080 8-bit parallel and 3/4 wire serial spi interface.
What's included in the package ?
|Number||Standard Accessory Name||Qty|
|Format||Documents Name||Version||Language||Update Date||Size|
|ER-DBC240160-2 User Guide||1.0||English||Jul-03-2017||
|MCU IC STC89LE516RD+STC89C516RD Datasheet||1.0||English||
|MCU Board Schematic Drawing||1.0||English||
|Adaptor Board Schematic Drawing||1.0||English||
|Gross Weight (kg)||0.6000|
|Continuity Supply||We promise the long term continuity supply for this product no less than 10 years since 2015.|
|Display Format||240x160 Dots|
|Interface||6800 8-bit Parallel , 8080 8-bit Parallel , 3-Wire Serial SPI, 4-Wire Serial SPI|
