8051 Microcontroller Development Board for Graphic LCD ERM12832-1
The display is a critical component in every project, impacting the case, firmware, electrical design, user interface, and even battery life. For these reasons, and because it is the most visible component of your product, it must be approved by the mechanical design team, management and marketing.Before these teams can approve, they need to see it in action. But it can take days or weeks to connect a display to your platform, initialize it and build a code library able to create believable demonstrations. Meanwhile, the whole project is on hold.Our 8051 development kit / demonstration board can solve this problem. Use it to get the display seen, demonstrated and approved for your project.
ER-DBM12832-1 is a microcontroller 8051(80C51) demonstration and development kit for ERM12832-1 series product that is 2.1 inch 128x32 graphic lcd module.The kit includes MCU board controlled by STC89C52RC, ISP(In System Programming) with USB port and cable to customize the demonstration that includes your own bitmap images,personalized fonts,symbols,icons and burn sketches,the power supply,the crimping tool used to connect display and MCU board.6800 8-bit parallel 3-wire Serial interface.

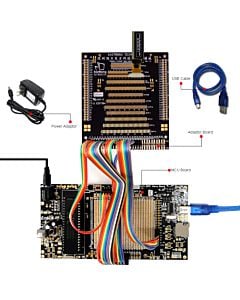

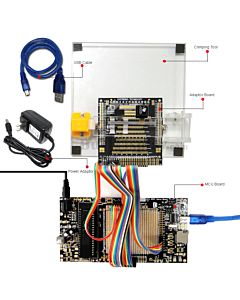

What's included in the package ?
|Number||Standard Accessory Name||Qty|
|Format||Documents Name||Version||Language||Update Date||Size|
|ER-DBM12832-1 User Guide||1.0||English||Aug-13-2018||
|MCU IC STC89LE52RC+STC89C52RC Datasheet||1.0||English||
|MCU Board Schematic Drawing||1.0||English||
|Adaptor Board Schematic Drawing||1.0||English||
|Gross Weight (kg)||0.6000|
|Continuity Supply||We promise the long term continuity supply for this product no less than 10 years since 2018.|
|Display Format||128x32 Dots|
|Interface||6800 8-bit Parallel , 3-Wire Serial SPI|
