8051 Microcontroller/MCU Development Board for TFT LCD ER-TFTM050A2-2-3686
The display is a critical component in every project, impacting the case, firmware, electrical design, user interface, and even battery life. For these reasons, and because it is the most visible component of your product, it must be approved by the mechanical design team, management and marketing.Before these teams can approve, they need to see it in action. But it can take days or weeks to connect a display to your platform, initialize it and build a code library able to create believable demonstrations. Meanwhile, the whole project is on hold.Our 8051 development kit / demonstration board can solve this problem. Use it to get the display seen, demonstrated and approved for your project.

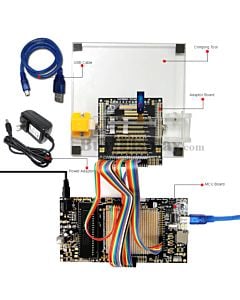

ER-DBTM050A2-2 is a microcontroller 8051(80C51) demonstration and development kit for ER-TFTM050A2-2-3686 product that is 5 inch tft lcd display with RA8875 controller board and capacitive touch panel.The kit includes MCU board controlled by STC12LE5A60S2,ISP(In System Programming) with USB port and cable to customize the demonstration that includes your own bitmap images,personalized fonts,symbols,icons and burn sketches,microSD card that is written graphic and text into it,the power adaptor,the adaptor board with various pitch dimension used to connect MCU board and display.Optional for 8080 8/16-bit,6800 8/16-bit parallel interface and I2C,3-wire,4-wire serial interface.
What's included in the package ?
|Number||Standard Accessory Name||Qty|
|Format||Documents Name||Version||Language||Update Date||Size|
|ER-DBTM050A2-2 User Guide||1.0||English||
|MCU IC STC12LE5A60S2 Datasheet||1.0||English||
|MCU Board Schematic Drawing||1.0||English||
|Adaptor Board Schematic Drawing||1.0||English||
|Gross Weight (kg)||0.4000|
|Continuity Supply||We promise the long term continuity supply for this product no less than 10 years since 2018.|
|Display Format||480x272 Pixels|
|Interface||6800 8-bit Parallel , 6800 16-bit Parallel , 8080 8-bit Parallel , 8080 16-bit Parallel , I2C, 3-Wire Serial SPI, 4-Wire Serial SPI|
