10.1 inch Raspberry PI Screen w/ HDMI+Video+VGA Driver Board,1024x600
- Buy 10 for US$64.30 each and save 3%
- Buy 30 for US$62.52 each and save 5%
- Buy 50 for US$60.82 each and save 8%
- Buy 100 for US$59.08 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
10.1 inch Raspberry PI Screen w/ HDMI+Video+VGA Driver Board,1024x600
US$66.03
-
AC100-240V To DC 12V 2A Power Supply Adapter for TFT Driving Board
US$3.11
-
Total price
※ Price Increase Notification
The TFT glass cell makers such as Tianma,Hanstar,BOE,Innolux has reduced or stopped the production of small and medium-sized tft glass cell from August-2020 due to the low profit and focus on the size of LCD TV,Tablet PC and Smart Phone .It results the glass cell price in the market is extremely high. We deeply regret that rapidly rising costs for tft glass cell necessitate our raising the price of tft display.We have made every attempt to avoid the increase, we could accept no profit from the beginning,but the price is going up frequently ,we're now losing a lot of money. We have no choice if we want to survive. There is no certain answer for when the price would go back to the normal.We guess it will take 2-3 months until these glass cell suppliers recover the production capacity for small and medium-sized glass. (Dec-01-2020)
Attention
All the accessories listed below tier pricing need to pay.We won't deliver until you select. Power adaptor should be 12V/2000mA in output and center pin for positive voltage and the outer shield for negative voltage.The temperature for controller RTD2660 would increase during working.That's normal phenomenon,not quality problem.
When lose signal,the screen is blue or black that is available in the menu setting.There is no snowy screen or white noise in setting menu.
Description

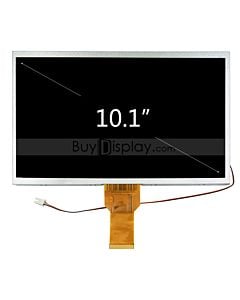

ER-TFTV101-1 is 1024x600 dots 10.1"color tft lcd module display with HDMI,VGA,Video signal driver board,optional 10.1 inch 4-wire resistive touch panel, touch panel usb port controller board,remote control,superior display quality,super wide view angle.It can be used in any embedded systems,car,industrial device,security and hand-held equipment which requires display in high quality and colorful video. It's also ideal for Raspberry Pi by HDMI.
What's included in the package ?
| Number | Standard Accessory Name | Qty |
|---|---|---|
| 1 | 10.1 inch TFT LCD 1024x600 Pixels Display | 1 |
| 2 | HDMI+Video+VGA Driver Board | 1 |
| 3 | Keyboard Cable with Terminal | 1 |
Datasheet for TFT LCD Display
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
10.1 inch TFT LCD with HDMI Video VGA Driver Board Datasheet | 1.0 | English |
Apr-23-2015 |
628K
|
Datasheet for Capacitive Touch Panel and USB Controller Board
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
ER-TPC101-3-USB Outline Drawing | 1.0 | English |
Oct-10-2018
|
285K
|
Datasheet for Resistive Touch Panel,Connector
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
1.0 | English |
Apr-21-2015
|
235K | |
|
1.0 | English |
Jun-19-2013
|
190K | |
 |
1.0 | English |
Jul-08-2013
|
56M |
| Gross Weight (kg) | 0.6840 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2013. |
| Part Number | ER-TFTV101-1 |
| Display Format | 1024x600 Pixels |
| Interface | Video(CVBS), VGA, HDMI |
| IC or Equivalent | HX8282, HX8696 |
| Appearance | RGB |
| Diagonal Size | 10.1“ |
| Connection | FPC-Connector |
| Outline Dimension | 235.0(W)x143.0(H)mm |
| Visual Area | 226.40x128.70mm |
| Active Area | 222.72(W)x125.28(H)mm |
| Dot (Pixel) Size | 0.2175(W)x0.2088(H)mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Angle Range | Left:70.0 , Right:70.0 , Up:50.0 , Down:50.0 degree |
| Brightness(Typ) | 150cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 12V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
-
RENE DIAZ
2020-08-31 21:32:43
Good morning, I would like to know if the screens from 5 to 10 inches are compatible with android. I appreciate your answer.
2 answers-
Sajay Peng
2020-09-01 02:22:24
Hi,
It has nothing to do with what kind of operating system you are using, As long as you could supply HDMI signals to our HDMI board, Then the screen will work.
Thanks. -
Marián Trpkoš
2021-04-24 15:21:05
Hey there,
I'd love to know the refresh rate / redraw time of this display / driver.
What's the achievable framerate? (through HDMI / VGA)
Thanks.
-
