8" TFT LCD Display 800x600 TouchScreen w/VGA+Video+HDMI Driver board
- Buy 10 for US$45.64 each and save 3%
- Buy 30 for US$44.34 each and save 5%
- Buy 50 for US$43.18 each and save 8%
- Buy 100 for US$41.94 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
8" TFT LCD Display 800x600 TouchScreen w/VGA+Video+HDMI Driver board
US$46.83
-
AC100-240V To DC 12V 2A Power Supply Adapter for TFT Driving Board
US$3.11
-
Total price
Attention
All the accessories listed below tier pricing need to pay.We won't deliver until you select. Power adaptor should be 12V/2000mA in output and center pin for positive voltage and the outer shield for negative voltage.The temperature for controller RTD2660 would increase during working.That's normal phenomenon,not quality problem.
When lose signal,the screen is blue or black that is available in the menu setting.There is no snowy screen or white noise in setting menu.
Description

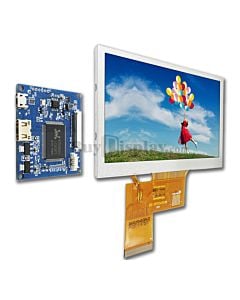

ER-TFTV080-2 is 800x600 dots 8"color tft lcd module display with HDMI,VGA,Video signal driver board,optional 8 inch 4-wire resistive touch panel, touch panel usb port controller board,remote control,superior display quality,super wide view angle.It can be used in any embedded systems,car,industrial device,security and hand-held equipment which requires display in high quality and colorful video. It's also ideal for Raspberry Pi by HDMI.
What's included in the package ?
| Number | Standard Accessory Name | Qty |
|---|---|---|
| 1 | 8 inch TFT LCD 800x600 Pixels Display | 1 |
| 2 | HDMI+Video+VGA Driver Board | 1 |
| 3 | Keyboard Cable with Terminal | 1 |
Datasheet for TFT LCD Display
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
8 inch TFT LCD with HDMI Video VGA Driver Board Datasheet | 1.0 | English |
May-17-2019 |
750K
|
Datasheet for Resistive Touch Panel,Connector
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
|
1.0 | English |
May-17-2019
|
284K | |
|
1.0 | English |
Jun-19-2013
|
190K | |
 |
1.0 | English |
Jul-08-2013
|
56M |
| Gross Weight (kg) | 0.5200 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2019. |
| Part Number | ER-TFTV080-2 |
| Display Format | 800x600 Pixels |
| Interface | Video(CVBS), VGA, HDMI |
| IC or Equivalent | HX8264 |
| Appearance | RGB |
| Diagonal Size | 8.0“ |
| Connection | FPC-Connector |
| Outline Dimension | 183.00(W)x141.00(H)mm |
| Visual Area | 164.80x124.30mm |
| Active Area | 162.00(W)x121.50(H)mm |
| Dot (Pixel) Pitch | 0.2025(W)x0.2531(H)mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Angle Range | Left:70.0 , Right:70.0 , Up:50.0 , Down:70.0 degree |
| Brightness(Typ) | 420cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 12V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
