Description

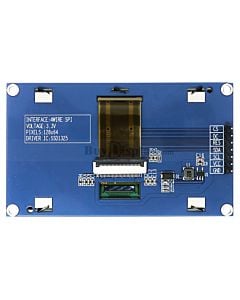

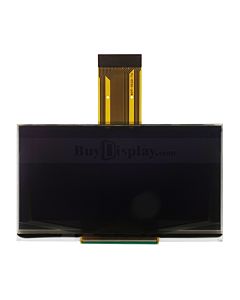

ER-OLEDM027-1W-SPI is the grayscale graphic OLED display module,attached with breakout board,made of 128x64 individual white OLED pixels,diagonal is only 2.7 inch.The controller ic SSD1325, communicates via 4-wire SPI serial interface,3.3V power supply,extremely wide viewing angle and extremely operating temperature. It's 4-wire SPI serial interface with pin header connection by default.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Of course, we wouldn't just leave you with a datasheet and a "good luck!" We prepared the interfacing documents,libraries and examples for arduino due,mega 2560,uno,nano and for raspberry pi or raspberry pi zero.For 8051 microcontroller user,we also prepared the interfacing document and demo code.
Datasheet for Display
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-OLEDM027-1_Datasheet | English | Jun-16-2025 |
558K
|
|
Controller IC SSD1325_Datasheet | English | Oct-01-2007 |
805K
|
Tutorial - Arduino
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
Arduino Library and Example | English | Jun-26-2025 |
16K
|
|
Interfacing 4-Wire SPI OLED Display Module to Arduino | English | Sep-05-2019 | 50K |
Tutorial - Raspberry Pi
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
Raspberry Pi Library and Example | English | Jun-26-2025 |
72K
|
|
Interfacing 4-Wire SPI OLED Display Module to Raspberry Pi | English | Sep-05-2019 | 55K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
English |
Jun-26-2025
|
209K |
Tutorial - ESP32
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
ESP32_Example | English | Jun-26-2025 |
16K
|
Tutorial - STM32
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
STM32_Example | English | Jun-26-2025 |
2.1M
|
| Gross Weight (kg) | 0.0480 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2025. |
| Part Number | ER-OLEDM027-1W-SPI |
| Display Format | 128x64 Pixels (Dots) |
| Interface | 4-wire SPI |
| IC or Equivalent | SSD1325 |
| Appearance | Black on White |
| Diagonal Size | 2.7” |
| Connection | Pin Header |
| Outline Dimension | 85.00(W)x50.00(H)mm |
| Visual Area | 63.41x32.69mm |
| Active Area | 61.41(W)x30.69(H)mm |
| Dot (Pixel) Size | 0.45x0.45mm |
| Dot (Pixel) Pitch | 0.48x0.48mm |
| IC Package | COG |
| Display Type | OLED |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Viewing Angle Range | Free |
| Brightness(Typ) | 100cd/m2 |
| Backlight Current (Typ) | N/A |
| Power Supply(Typ) | 3.3V |
| Supply Current for LCM(Max) | 1mA |
| Operating Temperature | -40℃~70℃ |
| Storage Temperature | -40℃~85℃ |
