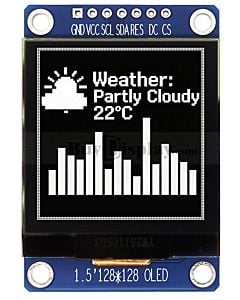

Serial 1.5 inch OLED 128x128 I2C Display Module,SH1107,White on Black
- Buy 10 for US$5.16 each and save 3%
- Buy 30 for US$5.02 each and save 5%
- Buy 50 for US$4.87 each and save 8%
- Buy 100 for US$4.72 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
Serial 1.5 inch OLED 128x128 I2C Display Module,SH1107,White on Black
US$5.31
-
8051 Microcontroller Development Board for OLED Display ER-OLED015-5
US$22.26
-
Total price
Description
ER-OLED015-5W is the graphic OLED display panel made of 128x128 individual white OLED pixels,diagonal is only 1.5 inch.The controller ic SH1107, communicates via 4-Wire SPI Serial interface,thanks to controller's built-in voltage generation,only a single 3.3V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the connector type,we offer optional zif connector(fpc connector).
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Datasheet
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-OLED015-5_Datasheet | English |
May-20-2026
|
615K
|
|
Controller IC SH1107_Datasheet | English | Jun-01-2013 | 460K |
|
12 Pins 0.5mm Pitch ZIF Connector (FPC Connector) | English | Jun-01-2012 | 276K |
Tutorial
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
English |
Jun-18-2026
|
175K |
| Gross Weight (kg) | 0.0180 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2026. |
| Part Number | ER-OLED015-5W |
| Display Format | 128x128 Pixels (Dots) |
| Interface | 4-wire SPI |
| IC or Equivalent | SH1107 |
| Appearance | White on Black |
| Diagonal Size | 1.5” |
| Connection | Plug-in FPC |
| Outline Dimension | 33.90W)x37.30(H)x1.4(T)mm |
| Visual Area | 28.86x28.86mm |
| Active Area | 26.86(W) x 26.86(H)mm |
| Dot (Pixel) Size | 0.18x0.18mm |
| Dot (Pixel) Pitch | 0.21x0.21mm |
| IC Package | COG |
| Display Type | OLED |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Viewing Angle Range | Free |
| Brightness(Typ) | 100cd/m2 |
| Power Supply(Typ) | 2.8V |
| Supply Current for LCM(Max) | 32mA |
| Operating Temperature | -40℃~70℃ |
| Storage Temperature | -40℃~85℃ |
