5.83 inch e-Ink 648x480 e-Paper Display Panel Red/White/Black SPI
- Buy 10 for US$32.42 each and save 3%
- Buy 30 for US$31.49 each and save 6%
- Buy 50 for US$30.57 each and save 8%
- Buy 100 for US$29.64 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Description
ER-EPD0583-1R is e-paper/e-ink panel that mimics the appearance of ink on normal paper. Unlike conventional displays, ePaper reflects light – just like ordinary paper – and is capable of holding text and images indefinitely, even without electricity. Because of this, ePaper displays and single board computers or microcontrollers are a match made in heaven as together they use a very small amount of power whilst still bringing a display to your project.
The ePaper display that comes with this ER-EPD0583-1R is a 5.83 inch 648x480 resolution with red/white/black color with embedded controller, communicating via SPI interface. One fantastic aspect of the ePaper display is the fact they don't need any power to keep the image on the screen. Just like a Kindle, you can read whatever is on your screen in daylight without any reflection. It comes with JD79686 controller,compact size (COG package),high contrast, sun readable,FPC connection,optional FPC connector.It supports 3/4-wire serial interface.

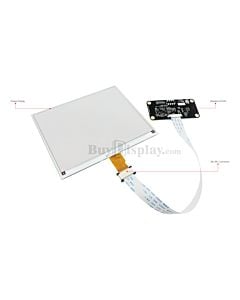

To fastly get started, please consider our e-paper panel connected with arduino shield or raspberry pi HAT. Libraries and samples are available for all of them.
Package Content
◇ e-Paper Display Panel x 1
* Please select if you wish to have optional accessories.
Application
◇ Logistics
◇ Reusable Transit Item
◇ Station Terminal
◇ Smart Card
◇ Smart Identity Tag
◇ Seat Number Tab
◇ Smart Luggage Tag
◇ Smart Coffee Cup
◇ Smart Home Application
◇ Identification & Access
◇ Display the Latest Weather Forecast
◇ Display Your Own Twitter Feed
◇ E-paper room booking system
◇ Other IoT (Internet of Things) Devices
◇ 1D/2D Barcode Electronic Shelf Label
Datasheet
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
5.83 inch E-Paper/E-Ink Display Datasheet | 1.0 | English | Jul-09-2020 |
1.19M
|
|
24 Pins 0.5mm Pitch ZIF Connector Drawing | 1.0 | English | Jul-26-2012 | 317K |
Tutorial- 8051
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
8051 Interfacing and Demo Code | 1.0 | English | Jul-22-2020 |
334K
|
| Gross Weight (kg) | 0.0490 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2020. |
| Part Number | ER-EPD0583-1R |
| Display Format | 648x480 Pixels |
| Interface | 3-Wire Serial SPI, 4-Wire Serial SPI |
| IC or Equivalent | JD79686 |
| Appearance | Red+Black on White |
| Diagonal Size | 5.83" |
| Connection | FPC-Connector |
| Outline Dimension | 125.40(W)x99.50(H)x1.18(T)mm |
| Visual Area | 118.78x88.22mm |
| Active Area | 118.78(W)x88.22(H)mm |
| Dot (Pixel) Pitch | 0.183x0.183mm |
| IC Package | COG |
| Display Type | E-Paper |
| Touch Panel Optional | No |
| Sunlight Readable | Yes |
| Viewing Angle Range | Left:85.0 , Right:85.0 , Up:85.0 , Down:85.0 degree |
| Power Supply(Typ) | 3V |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -0℃~40℃ |
