Red 7.5 inch e-Paper Display Raspberry Pi HAT,e-Ink 800x480
Availability: In stock
US$62.25
- Buy 10 for US$60.61 each and save 3%
- Buy 30 for US$58.97 each and save 5%
- Buy 50 for US$57.33 each and save 8%
- Buy 100 for US$55.70 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Shipping
We cooperate with DHL,FEDEX,TNT,EMS China Post and Singapore Post for shipment and choose the most appropriate one for the destination .A shipping cost estimate is displayed during online checkout based on the country you provide.
Payment
We primarily use paypal to process secure online payments. Through PayPal, we accept MasterCard, VISA, American Express,Discover cards.We also accept payment by wire transfer and west union.
Tax Information
ALL prices listed on buydisplay exclude taxes,import fees, and customs duties. Customers may be subject to these fees.
Warranty
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year after receipt of order and all products are free of visual defects and missing parts for a period of 7 days after receipt of order.If a product was damaged during shipping or the order is incorrect, please notify us within 3 days after receipt of order.
Return Policy
Products under warranty can be returned for repair or replacement.Before returning a product, you must contact us for a Return Material Authorization (RMA).If you have a product out of warranty that you would like to repair, please also contact us.
Continulty Supply
We promise the long terms continuity supply.Some controller IC or glass cell may stop the production by supplier,we'll try our efforts to find the compatible ones as replacement.
Description

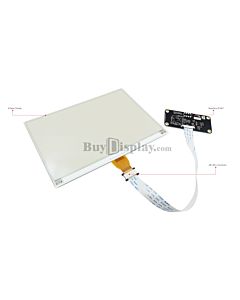

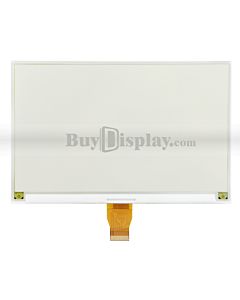

ER-EPD075-3R-5103 is 7.5 inch e-paper display panel with HAT, FFC and ZIF connector for raspberry pi or raspberry pi Zero. It comes with UC8179 controller,800x480 resolution,red/white/black color,compact size,high contrast, sunlight readable.
Package Content
◇ e-Paper Display Panel x 1
◇ Raspberry Pi HAT x 1
◇ FFC Cable x 1
◇ ZIF connector x 1
* Please select if you wish to have optional accessories.
Application
◇ Logistics
◇ Reusable Transit Item
◇ Station Terminal
◇ Smart Card
◇ Smart Identity Tag
◇ Seat Number Tab
◇ Smart Luggage Tag
◇ Smart Coffee Cup
◇ Smart Home Application
◇ Identification & Access
◇ Display the Latest Weather Forecast
◇ Display Your Own Twitter Feed
◇ E-paper room booking system
◇ Other IoT (Internet of Things) Devices
◇ 1D/2D Barcode Electronic Shelf Label
Datasheet
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
7.5 inch E-Paper/E-Ink Display Datasheet | English | Dec-22-2021 |
1.2M
|
|
Controller UC8179 Datasheet | English | Nov-26-2019 | 1.2M |
|
Raspberry Pi HAT Drawing | English | Jun-14-2019 | 354K |
Tutorial-Raspberry Pi
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
Raspberry Pi Library and Example | English | Dec-25-2021 | 181K |
|
Raspberry Pi HAT Interfacing Schematic | English | Jun-14-2019 |
194K
|
| Gross Weight (kg) | 0.0630 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2021. |
| Part Number | ER-EPD075-3R-5103 |
| Display Format | 800x480 Pixels |
| Interface | 3-Wire Serial SPI, 4-Wire Serial SPI |
| IC or Equivalent | UC8179 |
| Appearance | Red+Black on White |
| Diagonal Size | 7.5" |
| Connection | FPC-Connector |
| Outline Dimension | 170.20(W)x111.20(H)x1.15(T)mm |
| Visual Area | 163.20x97.92mm |
| Active Area | 163.20(W)x97.92(H)mm |
| Dot (Pixel) Pitch | 0.204X0.204 |
| IC Package | COG |
| Display Type | E-Paper |
| Touch Panel Optional | No |
| Sunlight Readable | Yes |
| Viewing Angle Range | Left:85.0 , Right:85.0 , Up:85.0 , Down:85.0 degree |
| Power Supply(Typ) | 3V |
| Operating Temperature | 0℃~30℃ |
| Storage Temperature | -0℃~40℃ |
