8051 Microcontroller Development Board for OLED Display ER-OLED1.69-2C
The display is a critical component in every project, impacting the case, firmware, electrical design, user interface, and even battery life. For these reasons, and because it is the most visible component of your product, it must be approved by the mechanical design team, management and marketing.Before these teams can approve, they need to see it in action. But it can take days or weeks to connect a display to your platform, initialize it and build a code library able to create believable demonstrations. Meanwhile, the whole project is on hold.Our 8051 development kit / demonstration board can solve this problem. Use it to get the display seen, demonstrated and approved for your project.

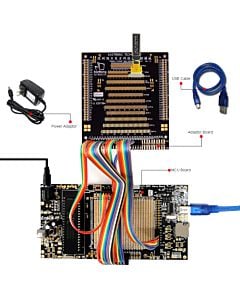

ER-DBO1.69-2 is a microcontroller 8051(80C51) demonstration and development kit for ER-OLED1.69-2C series product that is 1.69 inch color graphic oled display module.The kit includes MCU board controlled by STC12LE5A60S2,ISP(In System Programming) with USB port and cable to customize the demonstration that includes your own bitmap images,personalized fonts,symbols,icons and burn sketches,the power adaptor,the adaptor board with various pitch dimension used to connect MCU board and display,crimping tool used to fix display. It's 8080/6800 8-bit Parallel, 4-wire serial SPI interface.
What's included in the package ?
|Number||Standard Accessory Name||Qty|
|Format||Documents Name||Language||Update Date||Size|
|ER-DBO1.69-2 User Guide||English||Jul-15-2022||
|MCU IC STC12LE5A60S2 Datasheet||English||
|MCU Board Schematic Drawing||English||
|Adaptor Board Schematic Drawing||English||
|Gross Weight (kg)||0.4000|
|Continuity Supply||We promise the long term continuity supply for this product no less than 10 years since 2019.|
|Display Format||128x160 Pixels|
|Interface||6800 8-bit Parallel , 8080 8-bit Parallel , 4-Wire Serial SPI|
