Blue Grayscale 2.08 inch Graphic OLED 256x64 Display Panel SH1122
- Buy 10 for US$10.77 each and save 3%
- Buy 30 for US$10.48 each and save 5%
- Buy 50 for US$10.18 each and save 8%
- Buy 100 for US$9.89 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Description

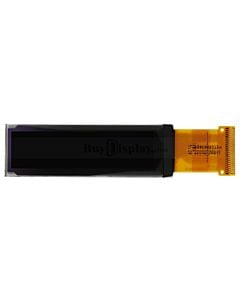

ER-OLED2.08-2B is the graphic OLED display panel made of 256x64 individual blue grayscale OLED pixels,diagonal is only 2.08 inch.The controller ic SH1122, communicates via 8-bit 6800/8080 Parallel,3/4-Wire Serial SPI,I2C interface,thanks to controller's built-in voltage generation,only a single 3.3V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.

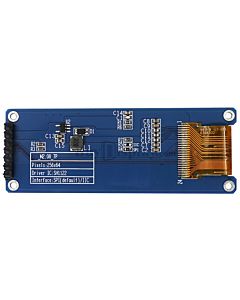

We recommend ER-OLEDM2.08-2B that is essentially the ER-OLED2.08-2 display panel equipped with a breakout board, facilitating seamless connections to devices such as Arduino or Raspberry Pi with interfacing documents,libraries and examples.
Datasheet for Display
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-OLED2.08-2_Datasheet | English | Jun-16-2025 |
624K
|
|
Controller IC SH1122_Datasheet | English | Jul-01-2012 |
370K
|
Tutorial- 8051 Microcontroller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
English |
Jun-26-2025
|
395K |
| Gross Weight (kg) | 0.0190 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2025. |
| Part Number | ER-OLED2.08-2B |
| Display Format | 256x64 Dots |
| Interface | I2C, 3-wire SPI, 4-wire SPI, 6800 8-bit Parallel , 8080 8-bit Parallel |
| IC or Equivalent | CH1122 |
| Appearance | Black on Blue |
| Diagonal Size | 2.08" |
| Connection | Plug in & Soldering FPC |
| Outline Dimension | 60.50(W)x19.00(H)x1.6(T)mm |
| Visual Area | 53.18x14.78mm |
| Active Area | 51.18(W)x12.78(H)mm |
| Dot (Pixel) Size | 0.18x0.18mm |
| Dot (Pixel) Pitch | 0.20x0.20mm |
| IC Package | COG |
| Display Type | OLED |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Viewing Angle Range | Free |
| Brightness(Typ) | 150cd/m2 |
| Power Supply(Typ) | 2.8V |
| Operating Temperature | -40℃~70℃ |
| Storage Temperature | -40℃~85℃ |
