Low Cost SPI 8 inch 800x600 TFT Touch Display Module for Arduino
US$52.33
- Buy 10 for US$50.95 each and save 3%
- Buy 30 for US$49.55 each and save 5%
- Buy 50 for US$48.20 each and save 8%
- Buy 100 for US$46.82 each and save 11%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Shipping
We cooperate with DHL,FEDEX,TNT,EMS China Post and Singapore Post for shipment and choose the most appropriate one for the destination .A shipping cost estimate is displayed during online checkout based on the country you provide.
Payment
We primarily use paypal to process secure online payments. Through PayPal, we accept MasterCard, VISA, American Express,Discover cards.We also accept payment by wire transfer and west union.
Tax Information
ALL prices listed on buydisplay exclude taxes,import fees, and customs duties. Customers may be subject to these fees.
Warranty
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year after receipt of order and all products are free of visual defects and missing parts for a period of 7 days after receipt of order.If a product was damaged during shipping or the order is incorrect, please notify us within 3 days after receipt of order.
Return Policy
Products under warranty can be returned for repair or replacement.Before returning a product, you must contact us for a Return Material Authorization (RMA).If you have a product out of warranty that you would like to repair, please also contact us.
Continulty Supply
We promise the long terms continuity supply.Some controller IC or glass cell may stop the production by supplier,we'll try our efforts to find the compatible ones as replacement.
Frequently Bought Together
-
This Item:
Low Cost SPI 8 inch 800x600 TFT Touch Display Module for Arduino
US$52.33
-
DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 for Arduino w/USB Cable
US$60.49
-
ATMEGA16U2 Board For Arduino Mega 2560 R3 Board 2012 Kit w/USB Cable
US$20.66
-
UNO R3 ATmega328P Development Board For Arduino Compatible+USB Cable
US$11.80
-
New WINBOND IC Chip FLASH 128M BIT W25Q128JV SOP8 Package
US$1.87
-
EANSDI 1GB TF Flash Memory Card Micro SD
US$4.83
-
Total price
Description

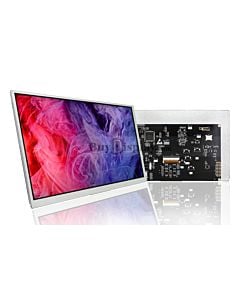

ER-TFT080-2-5799 is 800x600 Pixels 8 inch color tft lcd display with LT7683 controller board,superior display quality and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, and ARM .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.
It supports 8080 6800 8-bit,16-bit parallel,3-wire,4-wire,I2C serial spi interface.Built-in MicroSD card slot.It's optional for resistive touch panel with controller XPT2046 and capacitive touch panel with controller GT911, flash chip and microsd card.
We offer two types connection,one is pinheader and the another is ZIF connector with flat cable.
Also we design the arduino shield for this module,so the customers can easily connect this module with arduino board through shield.
We prepared the interfacing documents,libraries and examples for arduino due,mega 2560,uno,For 8051 microcontroller user,we also prepared the interfacing document and demo code.
Datasheet for Display Module
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT080-2-5799 Datasheet | English | Dec-14-2022 |
1.3M
|
|
Controller IC LT7683 Datasheet | English | Jul-10-2020 | 4.7M |
Datasheet for Touch Panel,Controller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
8 inch 4-Wire Resistive Touch Panel Outline Drawing | English | May-17-2019 | 285K |
|
Resistive Touch Panel Controller XPT2046 Datasheet | English | May-08-2007 | 579K |
|
8 inch Capacitive Touch Panel Outline Drawing | English | Dec-20-2022 | 251K |
|
Capacitive Touch Controller GT911 Datasheet | English | Mar-11-2015 | 1.6M |
Datasheet for Flash Memory,MicroSD Card Slot
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
128M-BIT Flash W25Q128FV Datasheet | English | Oct-01-2012 | 1.0M |
|
MicoSD Card Slot Drawing | English | Dec-12-2013 | 1.2M |
Datasheet for ZIF Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
English |
Aug-07-2013
|
270K | |
|
English |
Aug-07-2013
|
266K | |
|
English |
Apr-19-2013
|
268K |
Tutorial- Arduino
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
English |
Dec-25-2022
|
17.7M |
*When used with arduino shield, the SD card should be inserted into the arduino shield's card slot, not the module's card slot.
Tutorial- 8051 Microcontroller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
English |
Dec-20-2022
|
8.9M |
| Gross Weight (kg) | 0.3370 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2023. |
| Part Number | ER-TFT080-2-5799 |
| Display Format | 800x600 Pixels |
| Interface | 6800 8-bit Parallel , 6800 16-bit Parallel , 8080 8-bit Parallel , 8080 16-bit Parallel , I2C, 3-Wire Serial SPI, 4-Wire Serial SPI |
| IC or Equivalent | LT7683 |
| Appearance | RGB |
| Diagonal Size | 8.0“ |
| Connection | Pin Header, FFC-Connector |
| Outline Dimension | 198.00(W)x145.00(H) |
| Visual Area | 164.80x124.30mm |
| Active Area | 162.00(W)x121.50(H) |
| Dot (Pixel) Pitch | 0.202(W)x0.202(H)mm |
| IC Package | SMT |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Angle Range | Left:70.0 , Right:70.0 , Up:50.0 , Down:70.0 degree |
| Brightness(Typ) | 420cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 3.3V, 5V |
| Supply Current for LCM(Max) | 950mA ( VDD=3.3V) / 600mA ( VDD=5.0V) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
