4.3"TFT LCD Arduino Shield w/Tutorial,SSD1963 for Mega/Due

Description

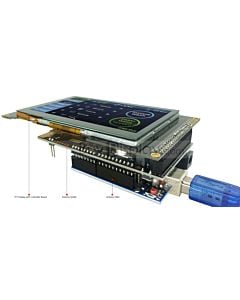

Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big full viewing angle (4.3" diagonal) bright (8 white-LED backlight) and colorfu 800x480 pixels with individual pixel control. As a bonus, this display has a optional resistive touch panel with controller XPT2046 attached by default and a optional capacitive touch panel with controller FT5206 attached by default, so you can detect finger presses anywhere on the screen and doesn't require pressing down on the screen with a stylus and has nice glossy glass cover.

The shield is fully assembled, tested and ready to go. No wiring, no soldering! Simply plug it in and load up our library - you'll have it running in under 10 minutes! Works best with any classic Arduino (Due/Mega 2560).
This display shield has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. You can connect more sensors, buttons and LEDs.

Of course, we wouldn't just leave you with a datasheet and a "good luck!" - we've written a full open source graphics library at the bottom of this page that can draw pixels, lines, rectangles, circles and text. We also have a touch screen library that detects x,y and z (pressure) and example code to demonstrate all of it. The code is written for Arduino but can be easily ported to your favorite microcontroller!

For people who want the same screen but not in a shield, check out our 4.3" TFT breakout.

What's included in the package ?

Number	Standard Accessory Name	Quantity
1	4.3 inch TFT LCD Display with SSD1963 Controller Board	1
2	Arduino Shield	1

*The default power supply is 5V and the default interface is 8080 16-bit parallel interface.

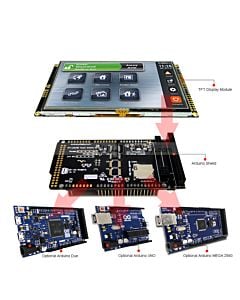

Compatible with following Arduino Boards

Board Name	MCU	I/O
Arduino MEGA2560	ATMEGA2560	54
Arduino MEGA1280	ATMEGA1280	54
Arduino Due	AT91SAM3X8EA	54
Arduino Uno	ATMEGA328	14



Attention

If you've had a lot of Arduino DUEs go through your hands (or if you are just unlucky), chances are you’ve come across at least one that does not start-up properly.The symptom is simple: you power up the Arduino but it doesn’t appear to “boot”. Your code simply doesn't start running.You might have noticed that resetting the board (by pressing the reset button) causes the board to start-up normally.The fix is simple,here is the solution.



Datasheet for Display Module

Format	Documents Name	Version	Language	Update Date	Size
	4.3"800x480 Display w/SSD1963 Controller Board Datasheet	1.0	English	Oct-1-2018	1.1M
	Controller IC SSD1963 Datasheet	1.0	English	Apr-01-2012	827K



Datasheet and Schematic for Arduino Shield

Format	Documents Name	Version	Language	Update Date	Size
	ER-AS-SSD1963 Datasheet	1.0	English	Mar-08-2016	767K
	ER-AS-SSD1963 Arduino Schematic Diagram	1.0	English	Aug-08-2019	252K



Datasheet for Touch Controller

Format	Documents Name	Version	Language	Update Date	Size
	4.3 inch Resistive Touch Panel Outline Drawing	1.0	English	May-13-2013	434K
	Resistive Touch Panel Controller XPT2046 Datasheet	1.0	English	May-08-2007	579K
	4.3 inch Capacitive Touch Panel Outline Drawing	1.0	English	Apr-14-2015	190K
	Capacitive Touch Panel Controller FT5206 Datasheet	1.0	English	Dec-20-2010	751K



Tutorial - Arduino Due (MEGA 2560)Libraries,Examples

Format	Documents Name	Version	Language	Update Date	Size
	4.3"Resistive+Capacitive Touch Shield+SD Card	1.0	English	Aug-21-2017	1.74M
