IPS 480x272 4.3'' TFT LCD Module Display Touch Panel Screen RA8875
US$34.48
- Buy 10 for US$33.62 each and save 2%
- Buy 30 for US$32.76 each and save 5%
- Buy 50 for US$31.90 each and save 7%
- Buy 100 for US$31.00 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
Shipping
We cooperate with DHL,FEDEX,TNT,EMS China Post and Singapore Post for shipment and choose the most appropriate one for the destination .A shipping cost estimate is displayed during online checkout based on the country you provide.
Payment
We primarily use paypal to process secure online payments. Through PayPal, we accept MasterCard, VISA, American Express,Discover cards.We also accept payment by wire transfer and west union.
Tax Information
ALL prices listed on buydisplay exclude taxes,import fees, and customs duties. Customers may be subject to these fees.
Warranty
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year after receipt of order and all products are free of visual defects and missing parts for a period of 7 days after receipt of order.If a product was damaged during shipping or the order is incorrect, please notify us within 3 days after receipt of order.
Return Policy
Products under warranty can be returned for repair or replacement.Before returning a product, you must contact us for a Return Material Authorization (RMA).If you have a product out of warranty that you would like to repair, please also contact us.
Continulty Supply
We promise the long terms continuity supply.Some controller IC or glass cell may stop the production by supplier,we'll try our efforts to find the compatible ones as replacement.
Frequently Bought Together
-
This Item:
IPS 480x272 4.3'' TFT LCD Module Display Touch Panel Screen RA8875
US$34.48
-
New WINBOND IC Chip FLASH 128M BIT W25Q128JV SOP8 Package
US$1.87
-
EANSDI 1GB TF Flash Memory Card Micro SD
US$4.83
-
Total price
Description
ER-TFT043A4-3-4267 is 4.3 inch 480x272 pixels IPS tft lcd display with RA8875 controller board. Optional capacitive and resistive touch screens. Excellent display quality, full viewing angle, easy to 8051, PIC, AVR, ARDUINO, ARM. MCU control for any embedded system. Industrial equipment, security and handheld devices require high quality, color image display.
It supports 8080 6800 8-bit,16-bit parallel,3-wire,4-wire,I2C serial spi interface.Built-in MicroSD card slot. It's optional for font chip, flash chip and microsd card. We offer two types connection,one is pinheader and the another is ZIF connector with flat cable.
In addition to providing you with a datasheet, we've also included arduino shield with libraries and examples for this module.

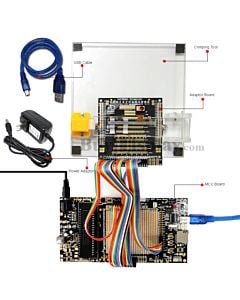

For those who use a 8051 microcontroller, we have also prepared a detailed tutorial that includes interfacing information, demo code, and a development kit. You can find this information at the bottom of the page.
We hope that these resources will make it easy for you to get started.
Datasheet for TFT LCD Module,Controller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT043A4-3-4267_Datasheet | English | Dec-15-2022 | 1.5M |
 |
ER-TFT043A4-3-4267_3D Model | English |
Jan-28-2021 |
8.0M |
|
Controller IC RA8875 Datasheet | English | Jul-31-2013 | 4.3M |
Datasheet for Touch Panel,Controller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
4.3 inch Resisitve Touch Panel Outline Drawing | English | May-13-2013 | 434K |
|
|
4.3 inch Capacitive Touch Panel Outline Drawing | English | Apr-21-2014 | 190K |
|
|
Capacitive Touch Controller FT5206 Datasheet | English | Dec-20-2010 | 751K |
Datasheet for Flash Memory,MicroSD Card Slot
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
128M-BIT Flash W25Q128JV Datasheet | English | Mar-27-2018 | 1.07M |
|
|
MicoSD Card Slot Drawing | English | Mar-28-2012 |
307K |
Datasheet for Font Chip
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
ER3300-1 Datasheet | English | May-08-2010 | 621K |
|
|
ER3301-1 Datasheet | English | Jan-27-2014 | 2.0M |
|
|
ER3303-1 Datasheet | English |
Jul-01-2013
|
688K |
|
|
ER3304-1 Datasheet | English |
Apr-01-2013
|
935K |
Datasheet for ZIF Connector
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|

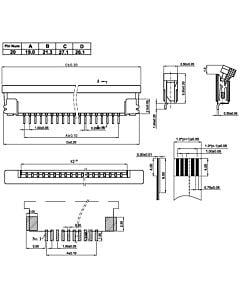

8 Pins 1.00mm Pitch ZIF Connector Drawing | English | Aug-07-2013 | 270K |
|
|
40 Pins 1.00mm Pitch ZIF Connector Drawing | English | Apr-19-2013 | 274K |
Tutorial - 8051 Demo Code
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
Serial/Parallel Interface+Capacitive and Resistive Touch 8051 Interfacing | English | Feb-10-2023 | 1.7M |
| Gross Weight (kg) | 0.1660 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2023 |
| Part Number | ER-TFT043A4-3-4267 |
| Display Format | 480x272 Pixels |
| Interface | 6800 8-bit Parallel , 6800 16-bit Parallel , 8080 8-bit Parallel , 8080 16-bit Parallel , I2C, 3-Wire Serial SPI, 4-Wire Serial SPI |
| IC or Equivalent | RA8875 |
| Appearance | RGB |
| Diagonal Size | 4.3” |
| Connection | Pin Header, FFC-Connector |
| Outline Dimension | 132.70W)x75.8(H)mm |
| Visual Area | 97.90x56.65mm |
| Active Area | 95.04(W)x53.86(H)mm |
| Dot (Pixel) Pitch | 0.198(W)x0.197(H)mm |
| IC Package | SMT |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Direction | IPS |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 500cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 3.3V, 5V |
| Supply Current for LCM(Max) | 230mA (Vdd=3.3V) 180mA (Vdd=5.0V) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
