5" 10240x600 HMI Intelligent Smart UART SPI Touch IPS TFT LCD Display
- Buy 10 for US$32.03 each and save 2%
- Buy 30 for US$31.21 each and save 5%
- Buy 50 for US$30.39 each and save 7%
- Buy 100 for US$29.57 each and save 10%
- Buy 500 or more Quote Request
Shipping
Payment
Tax Info
Warranty
Return Policy
Continulty Supply
-
This Item:
5" 10240x600 HMI Intelligent Smart UART SPI Touch IPS TFT LCD Display
US$32.85
-
Debugging Board for UART HMI Display
US$3.73
-
EANSDI 1GB TF Flash Memory Card Micro SD
US$6.23
-
Total price
Attention
The debugging board is specifically designed to facilitate debugging of projects and updating MCU or UI files via the UART port. We highly recommend acquiring one for your convenience
What's HMI/UART Display?
HMI+UART Display is a display solution that combines a human-machine interface with UART communication capabilities.
In addition to a controller,our HMI display also incorporates MCU functionality. The MCU receives commands sent from the main control board (client-side)via a UART interface and then displays text, images, or animations based on these predefined instructions. The MCU on the main control board(client-side) does not require complex programming or execution specifically for image display. You can use our GUI Design software - UI Editor to create text, images, or animations easily. No programming skill is needed.
Features of HMI/UART Display
1-High Quality

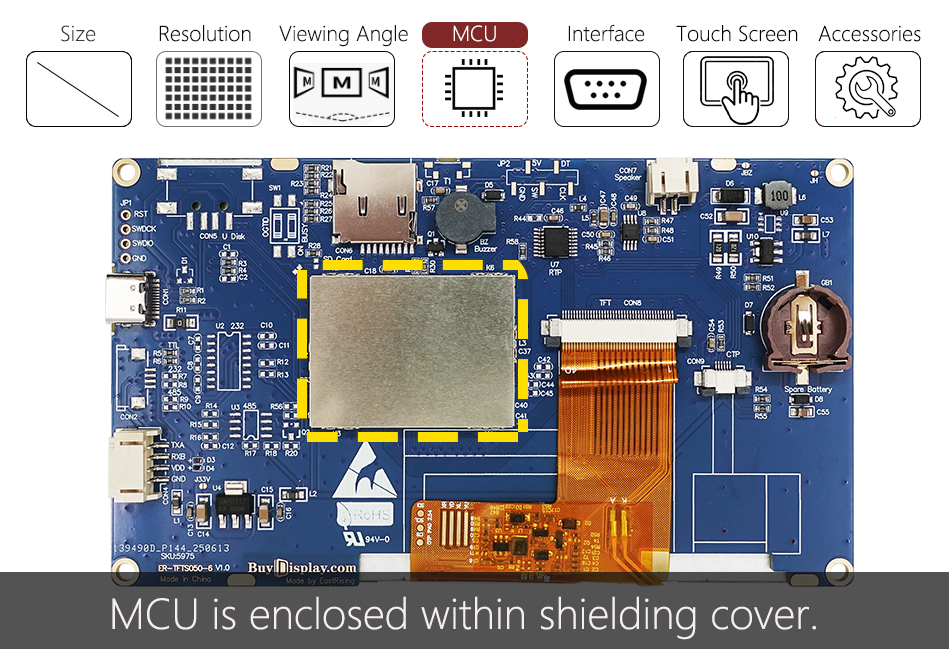

ER-TFT050B1-1-5975 is 5 inch 1024x600 HMI display utilize vivid full-view IPS panels with high- brightness backlight, and for anti-interference purposes, MCU is enclosed within shielding cover.
2-Various Options

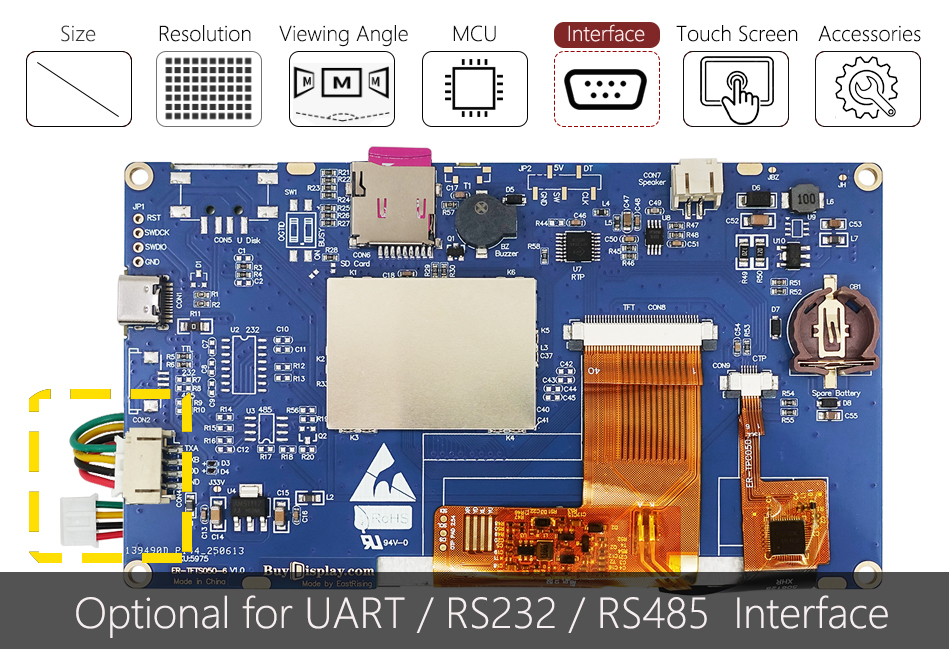

If the communication distance is too long for a UART interface, customers can choose RS232 or RS485 communication interfaces instead.
For touchscreens, customers can select from non-touch, resistive touchscreens, and capacitive touchscreens.
We also provide accessories such as louder speakers, rotary encoders, USB cables, SD cards, and debugging boards for customers to choose from.
3-Save Time&Cost
Without the need for touchscreen debugging or programming skills, customers can easily create a touch-enabled UI interface with rich graphics and texts using our provided GUI design software- UI Editor to saving customer's development time.
The pricing of this HMI Display is the same as that of a regular LCD module to save cost.
Features of Free GUI Design Software
1-Free UI Editor
① 5 Tools in 1
② Widgets Bar
③ Page Editing Window
④ Page ID and Name List
⑤ Widget List in the Designated Page
⑥ Widget Setting Window
(click below image for large one)
2-Tutorial Video Collection for UI Editor-II (To download the Project generated in the Tutorial Video)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Features of our services
1-Free Design
If you don't have time to learn how to use the UI Editor, we can help you make the UI interface you need. A new project will charge a design deposit based on the number of pages and widgets, and the entire design deposit will be refunded if the purchase amount reaches the standard.The images used in the UI are provided by the client. If our company provides the images required for the UI, there will be additional charges.| Design Deposit | Page Number | Widget Number | Reach the Purchase Amount to Refund Deposit |
| US$350 | ≤10 | ≤60 | US$7000 |
| US$700 | ≤20 | ≤120 | US$14000 |
2-Open-source Project
3-3D CAD Model
In addition to datasheets, we have also prepared 3D drawings for all HMI displays, which offer a visual and three-dimensional display of the product's shape, dimensions, and structure, enabling seamless integration with your products during the design phase.
Datasheet for HMI Display
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
ER-TFT050B1-1-5975_Datasheet | English | Sep-03-2026 | 1.4M |
Datasheet for Touch Panel
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
5 inch 4-Wire Resistive Touch Panel Datasheet | English | Nov-07-2013 | 492K |
|
|
Resistive Touch Panel Controller XPT2046 Datasheet | English | May-01-2007 | 578K |
|
|
5 inch Capacitive Touch Panel Outline Drawing | English | Apr-21-2014 | 190K |
|
|
Capacitive Touch Controller FT5316_Datasheet | English | Apr-03-2012 | 428K |
UI Editor
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
 |
UI_Editor-II_V2.30 | English | Jun-03-2024 | 86.1M |
|
|
UI_Editor-II_User_Manual_V2.30 | English | Jun-03-2024 | 11.6M |
 |
Tutorial Video Collection for UI Editor II | English | - | - |
|
|
Open Source HMI Project for 800x480 & 480x800 | English | - | - |
|
|
UI Material Library for HMI Display | English | - | - |
8051 Demo Code
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
Uart 8051 Demo Code | English | Jun-20-2024 | 10K |
STM32 Demo Code
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
|
|
STM32F103_Demo Code | English | Feb-19-2025 | 1.7M |
| Gross Weight (kg) | 0.1350 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2026. |
| Part Number | ER-TFT050B1-1-5975 |
| Display Format | 1024x600 Pixels |
| Interface | UART, RS232 , RS485 |
| IC or Equivalent | LT7689 |
| Appearance | RGB |
| Diagonal Size | 5.0“ |
| Connection | Female JST SH-Style Cable |
| Outline Dimension | 132.70(W)x75.80(H)mm |
| Visual Area | 110.70x67.40mm |
| Active Area | 108.03(W)x64.80(H)mm |
| Dot (Pixel) Pitch | 0.105x0.108mm |
| IC Package | SMT |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | Yes |
| Contrast Ratio(Typ) | 1200:1 |
| Colors | 65K/262K/16.7M |
| Viewing Direction | IPS |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 800cd/m2 |
| Backlight Color | White Color |
| Power Supply(Typ) | 5V |
| Supply Current for LCM(Max) | 520mA (Vdd=5V) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
